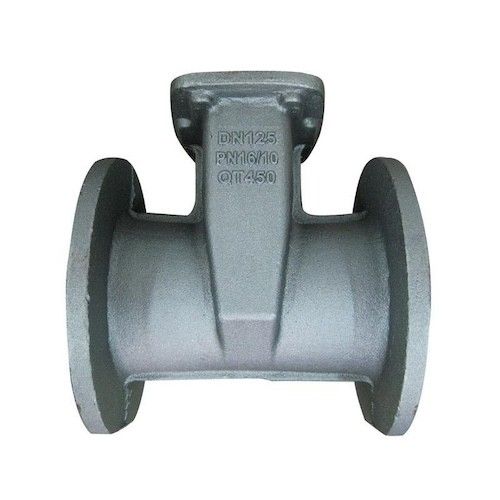

DN125 Pipe Fittings Ductile Iron Casting Tee Joints For Water System Supply

Ductile iron casting tee joints are commonly used in pipe systems to create a branch connection at a 90-degree angle. These tee joints allow for the diversion of fluid flow in different directions. Here are some key points about ductile iron casting tee joints for pipe fittings:

1. Material: Ductile iron, also known as nodular or spheroidal graphite iron, is a preferred material for casting tee joints due to its high strength, toughness, and resistance to corrosion. Ductile iron offers superior mechanical properties compared to other iron alloys, making it suitable for demanding pipe system applications.

2. Casting Process: Ductile iron tee joints are typically manufactured using the sand casting process, which involves creating a mold from a mixture of sand and binders. The mold is shaped to form the tee joint configuration, allowing for the molten ductile iron to be poured and solidify. The sand mold is then removed, leaving behind the finished casting.

3. Design Considerations: The design of ductile iron casting tee joints takes into account the size, pressure rating, and compatibility with the pipe system. Tee joints are designed to provide a smooth and efficient flow path while ensuring structural integrity. The design may include reinforcement ribs, flanges, or grooves for proper sealing and connection to the pipes.

4. Machining and Finishing: After the casting process, ductile iron tee joints may undergo machining operations to achieve precise dimensions and smooth surfaces. This may involve drilling, tapping, and milling to create openings for connection points. The tee joints may also undergo surface treatments such as painting or coating for improved corrosion resistance.

5. Connection Types: Ductile iron casting tee joints typically feature female threaded ends or flanged connections to facilitate easy installation and connection with the existing pipe system. The connection type may vary depending on the specific application and pipe size.

6. Quality Assurance: Ductile iron casting tee joints undergo stringent quality control measures to ensure they meet the required specifications and standards. This may involve dimensional inspections, pressure testing, and non-destructive testing methods to verify the integrity and performance of the tee joints.

Ductile iron casting tee joints provide a reliable and durable solution for creating branch connections in pipe systems. They are commonly used in industries such as water supply and distribution, wastewater treatment, plumbing, oil and gas, and various industrial applications. The strength, corrosion resistance, and versatility of ductile iron make it well-suited for these demanding environments.
